Name: SLB515 Threaded Beam Load Cell with Threaded Mounting for Industrial Weighing Applications
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: SLB515 Célula de carga de vigas roscadas
Availability: InStock

Inicio Productos

SLB515 Threaded Beam Load Cell with Threaded Mounting for Industrial Weighing Applications

Datos del producto:

Lugar de origen:	China
Nombre de la marca:	Mettler Toledo
Número de modelo:	SLB515 Célula de carga de vigas roscadas

Pago y Envío Términos:

Cantidad de orden mínima:	1 conjunto
Precio:	Negociable
Detalles de empaquetado:	Caja de Caron
Tiempo de entrega:	10-30 días
Capacidad de la fuente:	2000 fijado por mes

Contacto

Descripción detallada del producto

Producto:	Celular de carga de Mettler Toledo	Conectividad:	Se ha integrado
Capacidad máxima:	110 kg a 4400 kg (250 libras a 10000 libras)	metrología:	OIML C3, NTEP 5000d III M [220 kg a 2200 kg (500 libras a 5000 libras) ]
Calificación de protección:	Protección IP67	Material:	Aluminio, pasivado
entornos de lavado:	Se aplicarán las siguientes medidas:	capacidades que van desde:	110 kg a 4400 kg (250 libras a 10000 libras)
Exactitud:	OIML C3, NTEP 5000d III M [220 kg a 2200 kg (500 libras a 5000 libras) ]	Aprobaciones de peligrosidad:	ATEX, FM
Resaltar:	threaded beam load cell , industrial weighing load cell , threaded mounting load cell

SLB515 Threaded Beam Load Cell with Threaded Mounting for Industrial Weighing Applications

Key Features

Threaded load-introduction holes for easy integration
Hermetically sealed stainless-steel design
IP68/IP69K protection for harsh environments
Available capacity ranges: 110 kg to 4400 kg (250 lb to 10000 lb)
OIML C3, NTEP 5000d III M accuracy certifications
ATEX and FM hazardous area approvals

Product Description

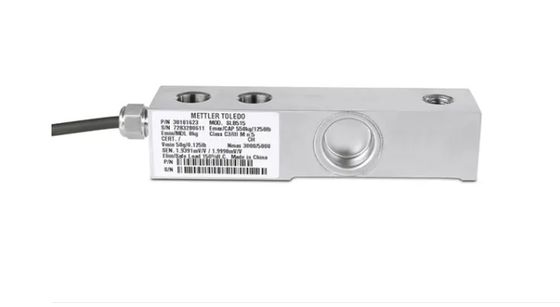

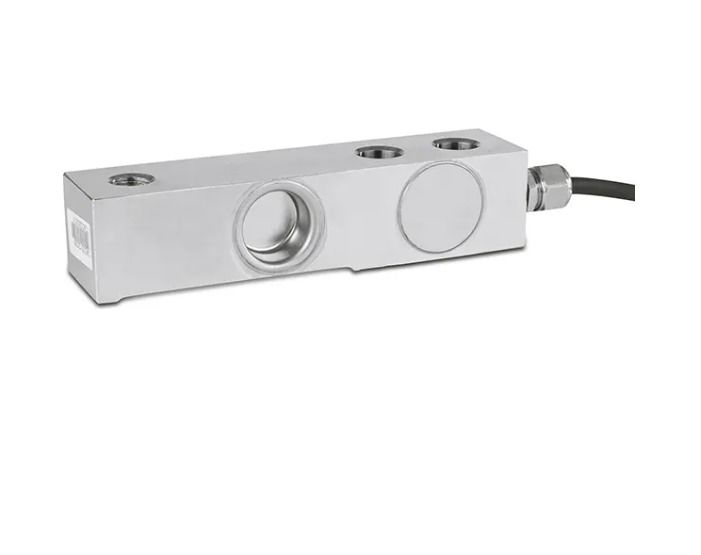

The SLB515 Threaded Beam Load Cell is a compact single-ended shear beam sensor designed for industrial weighing applications. Its threaded mounting system provides exceptional ease of integration into new or existing weighing systems.

Single-Ended Beam Load Cells with Threaded Load-Introduction Holes

The threaded load-introduction holes make these load cells ideal for floor scales and weighing platforms where a threaded foot provides easy height adjustment. This design offers optimal performance in various industrial applications.

Ingress Protection for Challenging Environments

The hermetically sealed, stainless-steel design makes SLB515 load cells perfect for harsh environments in process, food, and pharmaceutical applications. The IP68/IP69K protection ensures resistance to moisture and dust for maximum stability and measuring performance.

Accessories

Expansion and Vibration Kit (EVK): For top mounting applications to ensure optimal performance and isolation from vibrations while permitting thermal expansion and contraction.

Foot Kit (FKT): Provides convenience in floor scale applications where height adjustment is important.

Technical Specifications

Material	Aluminum, passivated
Maximum Capacity	110 kg to 4400 kg (250 lb to 10000 lb)
Protection Rating	IP68/IP69k
Hazardous Approvals	ATEX, FM
Accuracy	OIML C3, NTEP 5000d III M [220 kg to 2200 kg (500 lb to 5000 lb)]

Frequently Asked Questions

What are the capacity ranges for SLB515 load cells with threaded load-introduction holes?

SLB515 load cells are available with capacities ranging from 110 kg to 4400 kg (250 lb to 10000 lb).

What approvals do SLB515 load cells carry?

Accuracy: OIML C3, NTEP 5000d III M [220 kg to 2200 kg (500 lb to 5000 lb)]
Hazardous Approvals: ATEX, FM

Are SLB515 load cells suitable for washdown environments?

Yes, SLB515 is rated IP68/IP69k, making it ideal for washdown environments.
