Name: SWC515-A CS 7.5t – Compact Compression Weighing Module for Industrial Applications
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Módulo de pesaje SWC515-A CS 7.5t
Availability: InStock

Inicio Productos

SWC515-A CS 7.5t – Compact Compression Weighing Module for Industrial Applications

Datos del producto:

Lugar de origen:	China
Nombre de la marca:	Mettler Toledo
Número de modelo:	Módulo de pesaje SWC515-A CS 7.5t

Pago y Envío Términos:

Cantidad de orden mínima:	1 conjunto
Precio:	Negociable
Detalles de empaquetado:	Caja de Caron
Tiempo de entrega:	10-30 días
Capacidad de la fuente:	2000 fijado por mes

Contacto

Descripción detallada del producto

Producto:	Celular de carga de Mettler Toledo	Capacidad máxima:	16,500 lb (7,500 kg)
Material:	Cubra con cinc el acero plateado	metrología:	NTEP III 5.000d OIML C3
Celular de carga:	Cable de 12 m, SLC611	Exactitud:	Estándar
Calificación de protección:	IP68/69k	Medio ambiente / Materiales:	Acero normal / de carbono
Aprobación para áreas peligrosas:	ATEX, FM	Criticidad:	Estándar
Resaltar:	compact compression weighing module , industrial weighing load cell , Mettler Toledo load cell with warranty

SWC515-A CS 7.5t – Compact Compression Weighing Module for Industrial Applications

Product Overview

The SWC515-A CS 7.5t is a high-precision compression weigh module designed for industrial applications. Its robust construction and advanced features make it ideal for demanding weighing tasks in various industrial settings.

Key Features

Multi-purpose design suitable for static & dynamic tanks, hoppers, mixers, and conveyors
Enhanced safety with 360° self-checking, lift-off & down-stops protections
Easy installation with SafeLock™ plates and integrated space for hydraulic jack
Hazardous area approved with ATEX and FM certifications
High protection rating of IP68/IP69k for demanding environments

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	16,500 lb (7,500 kg)
Material	Zinc plated steel
Metrology	NTEP III 5,000d OIML C3
Load Cell	12 m cable, SLC611
Accuracy	Standard
Protection Rating	IP68/69k
Environment / Material	Normal / Carbon Steel
Hazardous Approval	ATEX, FM
Criticality	Standard

Application Details

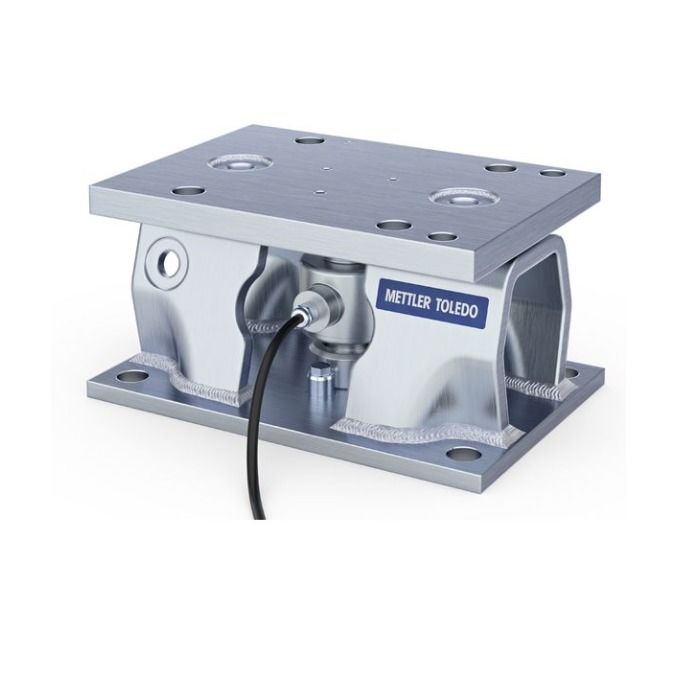

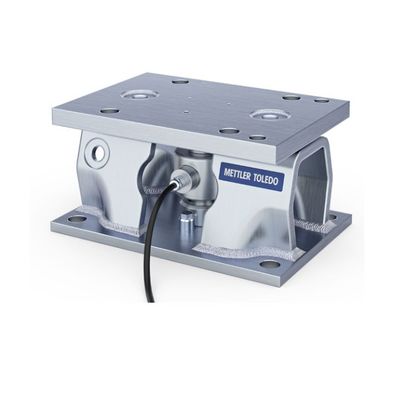

The SWC515-A CS 7.5t compression weigh module is designed for direct attachment to ground, piers, or structural beams. When weight is applied, the top plate and base plate compress toward each other, providing accurate measurements. This module is ideal for:

Large platform scales (truck and railroad track scales)
Tank, hopper, and silo weighing systems
Industrial process weighing applications

Capacities for compression load cells within these modules range from 3 kg to 300 tons, making them suitable for a wide variety of industrial weighing requirements.
