Name: SWC515-A CS 50t Weigh Module – Heavy-Duty Load Cell for Industrial Weighing
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Módulo de pesaje SWC515-A CS 50t
Availability: InStock

Inicio Productos

SWC515-A CS 50t Weigh Module – Heavy-Duty Load Cell for Industrial Weighing

Datos del producto:

Lugar de origen:	China
Nombre de la marca:	Mettler Toledo
Número de modelo:	Módulo de pesaje SWC515-A CS 50t

Pago y Envío Términos:

Cantidad de orden mínima:	1 CONJUNTO
Precio:	Negociable
Detalles de empaquetado:	Caja de Caron
Tiempo de entrega:	10-30 días
Capacidad de la fuente:	2000 fijado por mes

Contacto

Descripción detallada del producto

Producto:	Celular de carga de Mettler Toledo	Capacidad máxima:	110,000 libras (50.000 kg)
Material:	Cubra con cinc el acero plateado	metrología:	OIML C3, NTEP IIIL 10,000
Celular de carga:	0782/GD, cable de 13 m	Exactitud:	normalidad
Calificación de protección:	IP68/69k	Medio ambiente / Materiales:	Acero normal / de carbono
Aprobación para áreas peligrosas:	ATEX, FM	Criticidad:	normalidad
Resaltar:	heavy-duty industrial weigh module , 50t load cell for weighing , Mettler Toledo weigh module

SWC515-A CS 50t Weigh Module – Heavy-Duty Load Cell for Industrial Weighing

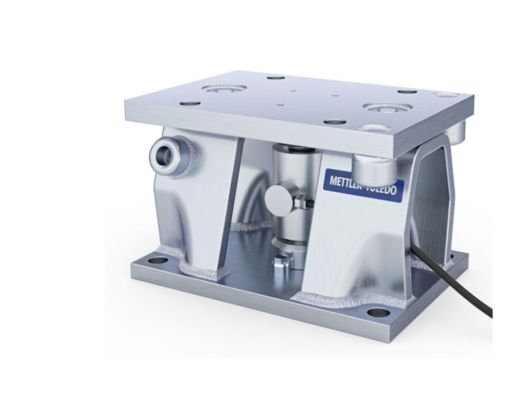

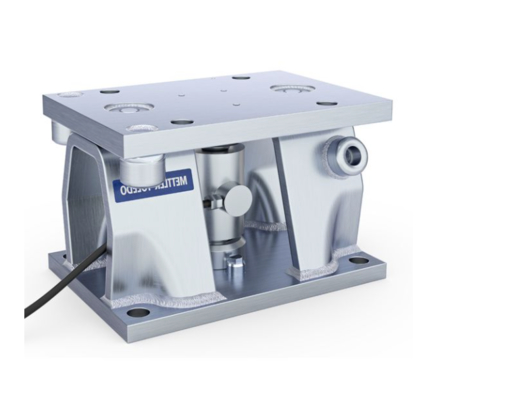

A compression weigh module designed so that its top plate and base plate will be squeezed toward each other when weight is applied. It can be attached directly to the ground, piers or structural beams. Compression weigh modules are typically used in multiples under large platform scales such as truck and railroad track scales and in tank, hopper and silo weighing.

Key Features

Multi-Purpose: Suitable for static & dynamic tanks, hoppers, mixers & conveyors with high accuracy fully approved stainless hermetic load cell
Enhanced Safety: Mechanical safety features (360° self-checking, lift-off & down-stops protections), hazardous approvals & IP68 load cells
Easy Installation: Fast and straightforward installation without damaging the Load Cell, thanks to SafeLock™ plates with integrated space for hydraulic jack

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	110,000 lb (50,000 kg)
Material	Zinc plated steel
Metrology	OIML C3, NTEP IIIL 10,000
Load Cell	0782/GD, 13 m cable
Accuracy	Standard
Protection Rating	IP68/69k
Environment / Material	Normal / Carbon Steel
Hazardous Approval	ATEX, FM
Criticality	Standard

Applications

Capacities for compression load cells range from 3 kg to 300 tons, making them ideal for:

Truck and railroad track scales
Tank, hopper and silo weighing systems
Industrial platform scales
Heavy-duty process weighing applications
