Name: 550kg 1.25k SWB505 316 Stainless Steel Load Cell Module – C6 Class for Industrial Weighing
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Módulo de pesaje SWB505 316 550KG/1.25K C6
Availability: InStock

Inicio Productos

550kg 1.25k SWB505 316 Stainless Steel Load Cell Module – C6 Class for Industrial Weighing

Datos del producto:

Lugar de origen:	China
Nombre de la marca:	Mettler Toledo
Número de modelo:	Módulo de pesaje SWB505 316 550KG/1.25K C6

Pago y Envío Términos:

Cantidad de orden mínima:	1 CONJUNTO
Precio:	Negociable
Detalles de empaquetado:	Caja de carón
Tiempo de entrega:	10-30 días
Capacidad de la fuente:	2000 fijado por mes

Contacto

Descripción detallada del producto

Producto:	Celular de carga de Mettler Toledo	Capacidad máxima:	1.250 lb (550 kg)
Material:	Acero inoxidable V4A (AISI 316)	metrología:	NTEP III 10.000d OIML C6
Celular de carga:	Cable de 5 m (16.6 pies) 0745A	Exactitud:	En alto.
Calificación de protección:	IP68 NEMA 6/6P	Entorno / Material:	Lavado frecuente / Higiénico
Aprobación para materiales peligrosos:	ATEX, FM, cFM	Criticidad:	normalidad
Resaltar:	316 stainless steel load cell , 550kg industrial weighing module , C6 class load cell

550kg 1.25k SWB505 316 Stainless Steel Load Cell Module – C6 Class for Industrial Weighing

Product Overview

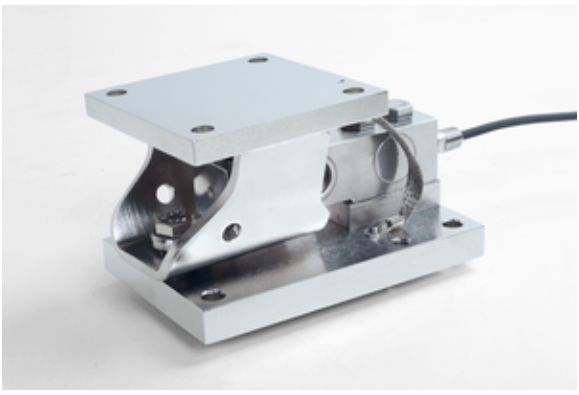

A high-precision compression weigh module designed for industrial weighing applications. Its stainless steel construction and robust design make it ideal for demanding environments including frequent wash-down and hygienic applications.

Key Features

Static & Dynamic Weighing: Multipurpose design provides highest accuracy for both static and dynamic applications

Safety & Protection: 360° checking, built-in anti-uplift and down stops, with hazardous area approvals

Easy Installation: Self-aligning rocker pin ensures repeatability with minimal lift required for service

Durable Construction: Stainless steel V4A (AISI 316) material with IP68/NEMA 6/6P protection rating

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	1,250 lb (550 kg)
Material	Stainless Steel V4A (AISI 316)
Metrology	NTEP III 10,000d OIML C6
Load Cell	0745A 5m (16.6ft) cable
Accuracy	High
Protection Rating	IP68 NEMA 6/6P
Environment/Material	Frequent wash-down / Hygienic
Hazardous Approval	ATEX, FM, cFM
Criticality	Standard

Application Details

This compression weigh module is designed so that its top plate and base plate will be squeezed toward each other when weight is applied. It can be attached directly to the ground, piers or structural beams. Typically used in multiples under large platform scales such as truck and railroad track scales, and in tank, hopper and silo weighing applications.

Economic System Integration

The SWB505 MultiMount Stainless Steel 316 weigh module offers exceptional value with its combination of high accuracy, durability, and ease of installation, making it an economical choice for industrial weighing systems.
