Name: SWB505 SS Load Cell Module with 10kg Precision Weighing Sensor Industrial Grade
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Peso del módulo SWB505 SS 10 kg
Availability: InStock

Inicio Productos

SWB505 SS Load Cell Module with 10kg Precision Weighing Sensor Industrial Grade

Datos del producto:

Lugar de origen:	China
Nombre de la marca:	Mettler Toledo
Número de modelo:	Peso del módulo SWB505 SS 10 kg

Pago y Envío Términos:

Cantidad de orden mínima:	1 CONJUNTO
Precio:	Negociable
Detalles de empaquetado:	Caja de carón
Tiempo de entrega:	10-30 días
Capacidad de la fuente:	2000 fijado por mes

Contacto

Descripción detallada del producto

Producto:	Celular de carga de Mettler Toledo	Capacidad máxima:	22 libras (10 kg)
material:	Acero inoxidable V2A (AISI 304)	metrología:	NTEP III 5M OIML C3
Celular de carga:	MTB, cable de 3 m	Exactitud:	estándar
Calificación de protección:	IP68/69k	Entorno / Material:	Lavado / acero inoxidable
Aprobación para materiales peligrosos:	ATEX, FM, cFM	Criticidad:	estándar
Resaltar:	10kg precision load cell , industrial grade weighing sensor , SS load cell module

SWB505 SS Load Cell Module with 10kg Precision Weighing Sensor - Industrial Grade

Economic System Integration - Weigh Module SWB505 MultiMount Stainless Steel 10kg/22lb

Static & Dynamic Weighing

Multipurpose weigh module provides the highest accuracy for both static and dynamic applications. Self-aligning rocker pin ensures repeatability.

Safety & Protection

Features include 360° checking, built-in anti-uplift and down stops, hazardous area approvals & IP68 stainless steel load cell for peace of mind.

Ease of Installation/Service

Product is aligned for installation & transition to weighing mode is easy. Minimal lift required to remove load cell.

Product Description

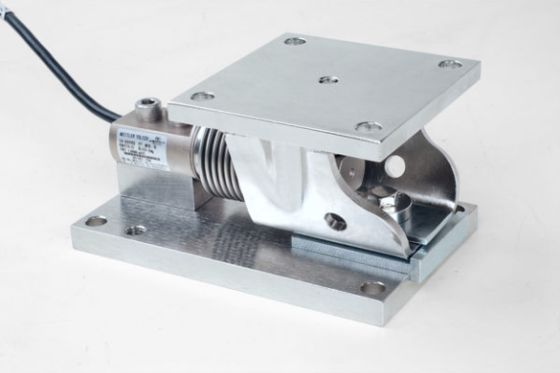

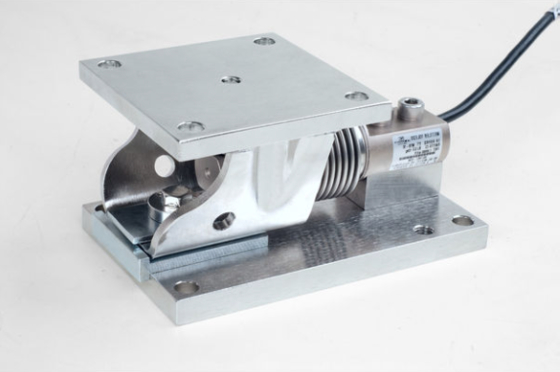

A compression weigh module designed so that its top plate and base plate compress when weight is applied. Can be attached directly to the ground, piers or structural beams. Typically used in multiples under large platform scales such as truck and railroad track scales, and in tank, hopper and silo weighing. Capacities range from 3 kg to 300 tons.

Technical Specifications

Product	Mettler Toledo Load Cell
Maximum Capacity	22 lb (10 kg)
Material	Stainless Steel V2A (AISI 304)
Metrology	NTEP III 5M OIML C3
Load Cell	MTB, 3 m cable
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Wash-down/Stainless Steel
Hazardous Approval	ATEX, FM, cFM
Criticality	Standard
