Name: 100kg SWB505 Carbon Steel Construction Load Cell Module with High Accuracy Weighing
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Peso del módulo SWB505 CS 100 kg
Availability: InStock

Inicio Productos

100kg SWB505 Carbon Steel Construction Load Cell Module with High Accuracy Weighing

Datos del producto:

Lugar de origen:	China
Nombre de la marca:	Mettler Toledo
Número de modelo:	Peso del módulo SWB505 CS 100 kg

Pago y Envío Términos:

Cantidad de orden mínima:	1 CONJUNTO
Precio:	Negociable
Detalles de empaquetado:	Caja de carón
Tiempo de entrega:	10-30 días
Capacidad de la fuente:	2000 fijado por mes

Contacto

Descripción detallada del producto

Producto:	Celular de carga de Mettler Toledo	Capacidad máxima:	220 lb (100 kg)
material:	Cubra con cinc el acero plateado	metrología:	NTEP III 5M OIML C3
Celular de carga:	MTB, cable de 3 m	Exactitud:	estándar
Calificación de protección:	IP68/69k	Entorno / Material:	Acero al carbono / Normal
Aprobación para materiales peligrosos:	ATEX, FM, cFM	Criticidad:	estándar
Resaltar:	100kg carbon steel load cell , high accuracy weighing module , SWB505 construction load cell

100kg SWB505 Carbon Steel Construction Load Cell Module with High Accuracy Weighing

Key Features

High accuracy compression weigh module for industrial applications
Zinc plated steel construction with IP68/69k protection rating
Certified for hazardous environments (ATEX, FM, cFM approved)
NTEP III 5M and OIML C3 metrology certifications
Includes MTB load cell with 3m cable

Product Description

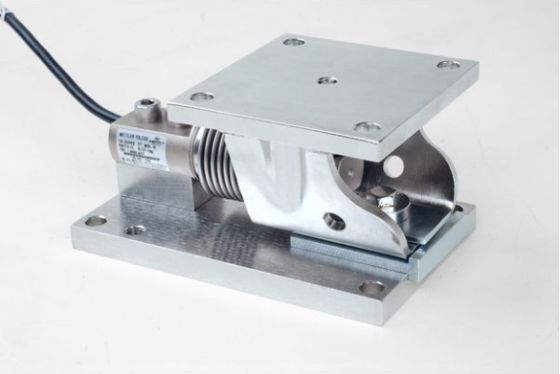

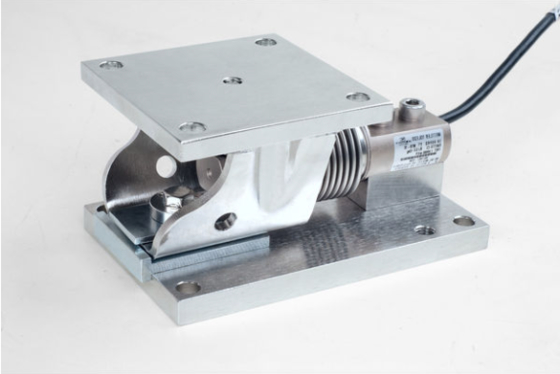

The SWB505 compression weigh module is engineered for precision weighing in demanding industrial environments. Its robust carbon steel construction with zinc plating ensures durability, while the compression design allows direct installation to ground, piers, or structural beams.

This module is ideal for large-scale weighing applications including platform scales, truck scales, and tank/silo weighing systems. With a capacity range from 3kg to 300 tons, it provides reliable performance for both static and dynamic weighing operations.

Technical Specifications

Maximum Capacity	220 lb (100 kg)
Material	Zinc plated steel
Load Cell	MTB, 3 m cable
Accuracy	Standard
Protection Rating	IP68/69k
Hazardous Approvals	ATEX, FM, cFM
Metrology Certifications	NTEP III 5M, OIML C3

System Advantages

Static & Dynamic Weighing

Multipurpose weigh module delivers high accuracy for both static and dynamic applications. The self-aligning rocker pin ensures consistent repeatability.

Safety & Protection

Features 360° checking, built-in anti-uplift and down stops, with hazardous area approvals and IP68 stainless steel load cell for maximum reliability.

Easy Installation & Maintenance

Pre-aligned for quick installation with minimal lift required for load cell removal, reducing downtime during service.
