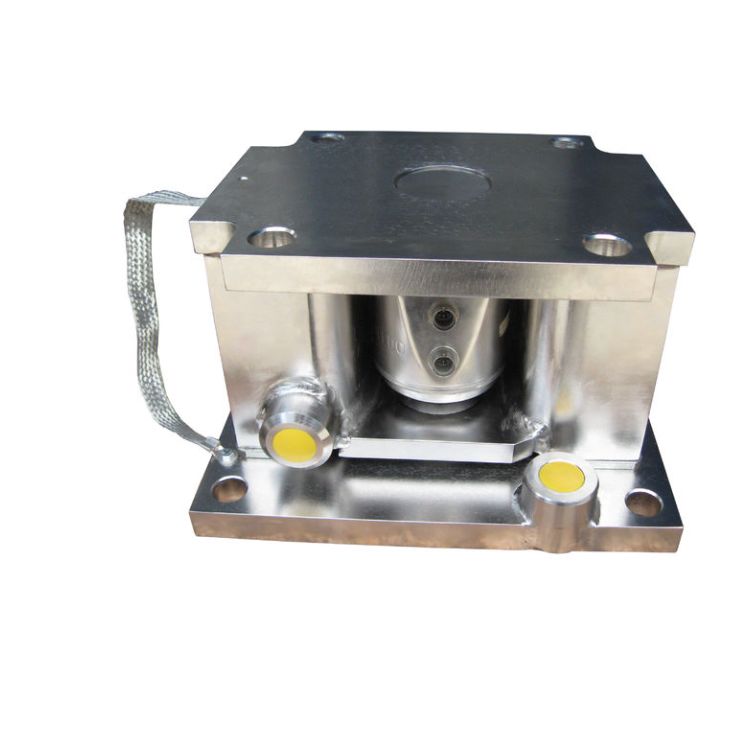

Name: SWC615 Carbon Steel PM Type Load Cell Module with 90T Capacity S3A Accuracy Grade
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Módulo de pesaje SWC615 PM CS 90T S3A
Availability: InStock

Inicio Productos

SWC615 Carbon Steel PM Type Load Cell Module with 90T Capacity S3A Accuracy Grade

Datos del producto:

Lugar de origen:	China
Nombre de la marca:	Mettler Toledo
Número de modelo:	Módulo de pesaje SWC615 PM CS 90T S3A

Pago y Envío Términos:

Cantidad de orden mínima:	1 CONJUNTO
Precio:	Negociable
Detalles de empaquetado:	Caja de carón
Tiempo de entrega:	10-30 días
Capacidad de la fuente:	2000 fijado por mes

Contacto

Descripción detallada del producto

Producto:	Celular de carga de Mettler Toledo	Capacidad máxima:	198,000 lb (90,000 kg)
material:	Cubra con cinc el acero plateado	metrología:	OIML C3, NTEP IIIL 10.000 OIML C4 y otras medidas de apoyo
Celular de carga:	POWERCELL PDX	Exactitud:	estándar
Calificación de protección:	IP68/69k	Entorno / Material:	Acero al carbono / Normal
Aprobación para materiales peligrosos:	Zona ATEX 2 / 22 UL División 2	Criticidad:	Monitoreo de las condiciones
Resaltar:	Carbon Steel PM load cell , 90T capacity load cell , S3A accuracy load cell

SWC615 Carbon Steel PM Type Load Cell Module with 90T Capacity S3A Accuracy Grade

High-Performance Compression Weigh Module

A robust compression weigh module designed for industrial applications where its top plate and base plate compress under load. Engineered for direct attachment to ground, piers, or structural beams. Ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing systems with capacities ranging from 3 kg to 300 tons.

Key Features

Multi-purpose Application: Suitable for static & dynamic tanks, hoppers, mixers, and conveyors with high accuracy stainless hermetic load cell
Enhanced Safety: 360° self-checking, dual lift-off & down-stops, ground strap, hazardous approvals & IP68 stainless load cell protection
Predictive Diagnostics: Monitors load cells for overload, temperature changes, breach detection, and zero drift to prevent system failures

Technical Specifications

Material	Zinc plated steel (Material No: 30057238)
Maximum Capacity	198,000 lb (90,000 kg)
Protection Rating	IP68/69k
Environment/Material	Normal/Carbon Steel
Hazardous Approval	ATEX Zone 2/22, UL Division 2
Load Cell	POWERCELL PDX
Accuracy	Standard
Metrology	OIML C3, NTEP IIIL 10,000, OIML C4
