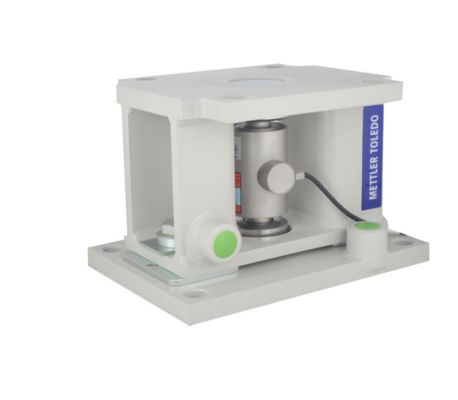

Name: 50t SWC415 Industrial Load Cell Module PM Type with Durable Carbon Steel Housing
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Módulo de pesaje SWC515 SS 100T
Availability: InStock

Inicio Productos

50t SWC415 Industrial Load Cell Module PM Type with Durable Carbon Steel Housing

Datos del producto:

Lugar de origen:	China
Nombre de la marca:	Mettler Toledo
Número de modelo:	Módulo de pesaje SWC515 SS 100T

Pago y Envío Términos:

Cantidad de orden mínima:	1 CONJUNTO
Precio:	Negociable
Detalles de empaquetado:	Caja de carón
Tiempo de entrega:	10-30 días
Capacidad de la fuente:	2000 fijado por mes

Contacto

Descripción detallada del producto

Producto:	Celular de carga de Mettler Toledo	Capacidad máxima:	110,000 libras (50.000 kg)
material:	Cubra con cinc el acero plateado	metrología:	OIML C3, NTEP IIIL 10,000
Celular de carga:	0782/GD	Exactitud:	estándar
Calificación de protección:	IP68/69k	Entorno / Material:	Acero al carbono / Normal
Aprobación para materiales peligrosos:	ATEX, FM, IEC Ex	Criticidad:	estándar
El cable:	13 m
Resaltar:	50t industrial load cell , SWC415 PM load cell , carbon steel load cell module

50t SWC415 Industrial Load Cell Module PM Type with Durable Carbon Steel Housing

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	110,000 lb (50,000 kg)
Material	Zinc plated steel
Metrology	OIML C3, NTEP IIIL 10,000
Load Cell	0782/GD
Accuracy	Standard
Protection Rating	IP68/69k
Environment / Material	Normal / Carbon Steel
Hazardous Approval	ATEX, FM, IEC Ex
Criticality	Standard
Cable	13 m

Product Description

A compression weigh module is designed so that its top plate and base plate will be squeezed toward each other when weight is applied to it, and it can be attached directly to the ground, piers or structural beams. Compression weigh modules are typically used in multiples under large platform scales such as truck and railroad track scales and in tank, hopper and silo weighing. Capacities for compression load cells, which are within compression weigh modules, range from 3 kg to 300 tons.

Cost Efficient

Weigh module is designed for economic applications. With highly accurate, fully approved stainless load cells, it suits many applications.
Safety & Protection

Gain peace of mind with 360-degree self-checking, dual lift-off, hazardous approvals and an IP68/IP69K-protected load cell.
Ease of Installation

It is light, low profile and thanks to SafeLock aligned and rigidly locked for installation with or without the load cell installed.

Specifications

Material	Zinc plated steel
Material No	30315453
Maximum Capacity	110,000 lb (50,000 kg)
Protection Rating	IP68/69k
Environment / Material	Normal / Carbon Steel
Hazardous Approval	ATEX, FM, IEC Ex
Load Cell	0782/GD
Accuracy	Standard
Metrology	OIML C3, NTEP IIIL 10,000
