Name: 100 Ton SWC415 PM Stainless Steel Load Cell Module for Industrial Weighing Solution
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Módulo de pesaje SWC515 SS 100T
Availability: InStock

Inicio Productos

100 Ton SWC415 PM Stainless Steel Load Cell Module for Industrial Weighing Solution

Datos del producto:

Lugar de origen:	China
Nombre de la marca:	Mettler Toledo
Número de modelo:	Módulo de pesaje SWC515 SS 100T

Pago y Envío Términos:

Cantidad de orden mínima:	1 CONJUNTO
Precio:	Negociable
Detalles de empaquetado:	Caja de carón
Tiempo de entrega:	10-30 días
Capacidad de la fuente:	2000 fijado por mes

Contacto

Descripción detallada del producto

Producto:	Celular de carga de Mettler Toledo	Capacidad máxima:	220,000 libras (100,000 kg)
material:	Acero inoxidable, de grado 304	metrología:	OIML C3, NTEP IIIL 10,000
Celular de carga:	0782/GD	Exactitud:	estándar
Calificación de protección:	IP68/69k	Entorno / Material:	Lavado / acero inoxidable
Aprobación para materiales peligrosos:	ATEX, FM	Criticidad:	estándar
El cable:	42.5 pies (13 m)
Resaltar:	100 ton stainless steel load cell , SWC415 industrial weighing module , Mettler Toledo load cell with warranty

100 Ton SWC415 PM Stainless Steel Load Cell Module for Industrial Weighing Solution

Cost Efficient

Weigh module is designed for economic applications with highly accurate, fully approved stainless load cells suitable for many industrial applications.

Safety & Protection

Features 360-degree self-checking, dual lift-off protection, hazardous approvals, and an IP68/IP69K-protected load cell for maximum reliability.

Ease of Installation

Lightweight, low-profile design with SafeLock technology for easy alignment and rigid installation with or without the load cell installed.

Product Description

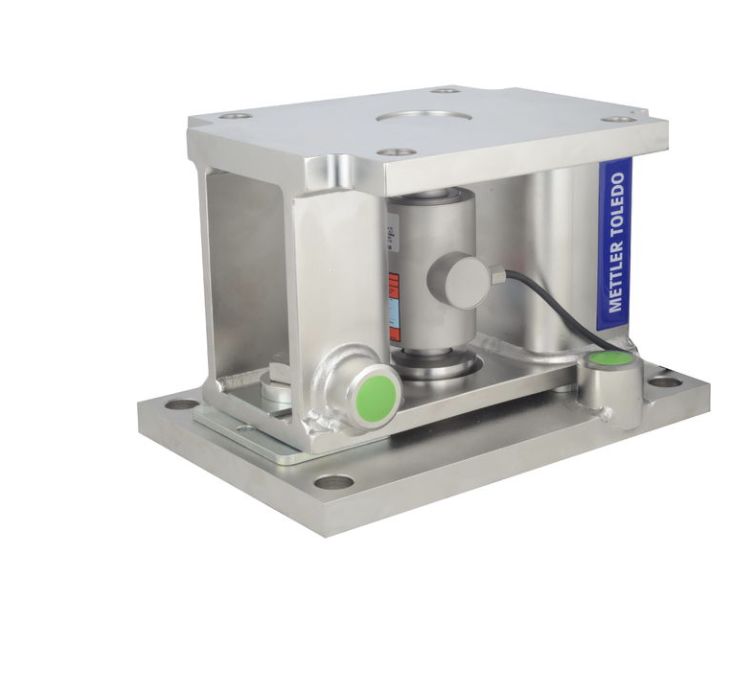

A compression weigh module designed so that its top plate and base plate compress when weight is applied. Can be attached directly to ground, piers, or structural beams. Typically used in multiples under large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications. Capacities range from 3 kg to 300 tons.

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	220,000 lb (100,000 kg)
Material	Stainless steel, grade 304
Metrology	OIML C3, NTEP IIIL 10,000
Load Cell	0782/GD
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Wash-down/Stainless Steel
Hazardous Approval	ATEX, FM
Criticality	Standard
Cable	42.5 ft (13 m)
