Name: 1250kg Capacity SWB220 Stainless Steel Load Cell with Industrial Weighing Module
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Modulo de peso SWB220 SS 1.25K
Availability: InStock

Inicio Productos

1250kg Capacity SWB220 Stainless Steel Load Cell with Industrial Weighing Module

Datos del producto:

Lugar de origen:	China
Nombre de la marca:	Mettler Toledo
Número de modelo:	Modulo de peso SWB220 SS 1.25K

Pago y Envío Términos:

Cantidad de orden mínima:	1 CONJUNTO
Precio:	Negociable
Detalles de empaquetado:	Caja de carón
Tiempo de entrega:	10-30 días
Capacidad de la fuente:	2000 fijado por mes

Contacto

Descripción detallada del producto

Producto:	Celular de carga de Mettler Toledo	Capacidad máxima:	550 kg/1,250 libras
material:	Acero inoxidable 304	metrología:	OIML C3, NTEP III 5M
Celular de carga:	SLB515	Exactitud:	estándar
Calificación de protección:	IP68/69k	Entorno / Material:	Lavado / acero inoxidable
Aprobación para materiales peligrosos:	ATEX, FM, cFM	Criticidad:	estándar
El cable:	16.4 pies (5 m)
Resaltar:	1250kg stainless steel load cell , industrial weighing module load cell , Mettler Toledo SWB220 load cell

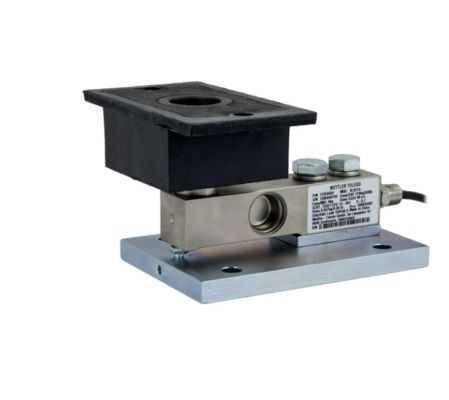

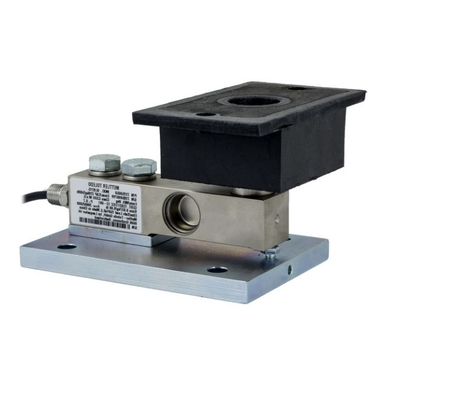

1250kg Capacity SWB220 Stainless Steel Load Cell with Industrial Weighing Module

A compression weigh module designed for industrial applications where its top plate and base plate are compressed when weight is applied. This module can be directly attached to the ground, piers, or structural beams. Ideal for use in multiples under large platform scales such as truck and railroad track scales, as well as tank, hopper, and silo weighing systems. Capacity ranges from 3 kg to 300 tons.

Economical Weighing Solution

SWB220 Weigh Modules are suitable for general purpose static weighing of OEM machinery, conveyors, tanks and hoppers with limited lateral movement.

Multi-purpose: Fits a wide range of general weighing applications

Built-in Overload Stop: Prevents damage to load cell sensor

Elastomeric Compression Mount: Upper load receiver with neoprene covered steel insert provides isolation from vibration

Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	550 kg/1,250 lb
Material	304 Stainless steel
Metrology	OIML C3, NTEP III 5M
Load Cell	SLB515
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Wash-down/Stainless Steel
Hazardous Approval	ATEX, FM, cFM
Criticality	Standard
Cable	16.4 ft (5 m)
