Name: 30t SWC415 PM CS Weigh Module – Carbon Steel Heavy-Duty Load Cell System
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Modulo de pesaje SWC415 PM SS 15t
Availability: InStock

Inicio Productos

30t SWC415 PM CS Weigh Module – Carbon Steel Heavy-Duty Load Cell System

Datos del producto:

Lugar de origen:	China
Nombre de la marca:	Mettler Toledo
Número de modelo:	Modulo de pesaje SWC415 PM SS 15t

Pago y Envío Términos:

Cantidad de orden mínima:	1 conjunto
Precio:	Negociable
Detalles de empaquetado:	Caja de cartón
Tiempo de entrega:	10-30 días
Capacidad de la fuente:	2000 juegos por mes

Contacto

Descripción detallada del producto

Producto:	Mettler Toledo Celular de carga	Capacidad Máxima:	66,000 libras (30.000 kg)
Material:	Cubra con cinc el acero plateado	Metrología:	OIML C3, NTEP IIIL 10,000
Celular de carga:	0782/GD	Precisión:	Estándar
Calificación de protección:	IP68/69k	Entorno / Material:	Acero al carbono / Normal
Aprobación para materiales peligrosos:	El número de unidades de ensayo debe ser el siguiente:	Criticidad:	Estándar
El cable:	13 m
Resaltar:	carbon steel weigh module , heavy-duty load cell system , Mettler Toledo weigh module

30t SWC415 PM CS Weigh Module – Carbon Steel Heavy-Duty Load Cell System

Key Features

Cost Efficient: Economical solution with highly accurate, fully approved stainless load cells suitable for diverse applications
Safety & Protection: Features 360-degree self-checking, dual lift-off protection, hazardous area approvals, and IP68/IP69K-rated load cell
Ease of Installation: Lightweight, low-profile design with SafeLock technology for secure alignment during installation

Product Description

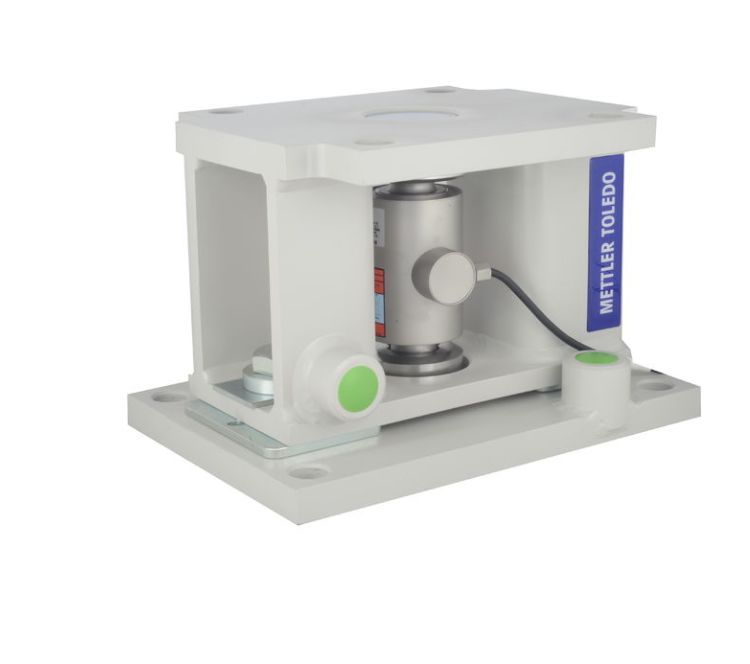

The 30t SWC415 PM CS compression weigh module is engineered for heavy-duty industrial applications. Its design allows the top plate and base plate to compress when weight is applied, enabling direct attachment to ground surfaces, piers, or structural beams. This system is ideal for large-scale weighing applications including truck scales, railroad track scales, and tank/hopper/silo weighing systems, with capacity ranges from 3 kg to 300 tons.

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	66,000 lb (30,000 kg)
Material	Zinc plated steel
Metrology	OIML C3, NTEP IIIL 10,000
Load Cell	0782/GD
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Normal/Carbon Steel
Hazardous Approval	ATEX, FM IEC Ex
Criticality	Standard
Cable	13 m
