Name: SWB805 Weigh Module 4.4T/10K C1 – 316 Stainless Steel High-Accuracy Load Cell
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Modulo de pesaje SWB805 316 4.4T/10K C1
Availability: InStock

Inicio Productos

SWB805 Weigh Module 4.4T/10K C1 – 316 Stainless Steel High-Accuracy Load Cell

Datos del producto:

Lugar de origen:	China
Nombre de la marca:	Mettler Toledo
Número de modelo:	Modulo de pesaje SWB805 316 4.4T/10K C1

Pago y Envío Términos:

Cantidad de orden mínima:	1 conjunto
Precio:	Negociable
Detalles de empaquetado:	Caja de cartón
Tiempo de entrega:	10-30 días
Capacidad de la fuente:	2000 juegos por mes

Contacto

Descripción detallada del producto

Producto:	Mettler Toledo Celular de carga	Capacidad Máxima:	10,000 lb (4,400 kg)
El material:	Acero inoxidable 316	metrología:	NTEP III 1.6 M OIML C1
Celular de carga:	SLB815	Precisión:	Bajo
Calificación de protección:	IP68/69k	Entorno / Material:	Lavado frecuente / Higiénico
Una aprobación peligrosa:	ATEX, FM, cFM	Criticidad:	normalidad
El cable:	5 m
Resaltar:	316 stainless steel weigh module , high-accuracy 10K load cell , Mettler Toledo 4.4T load cell

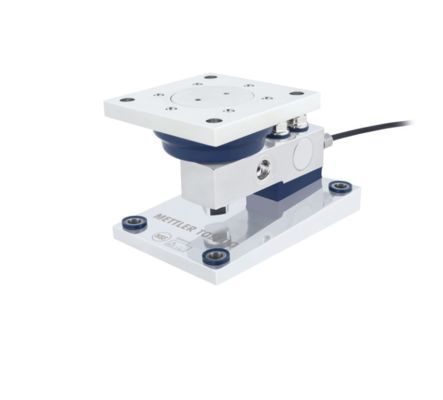

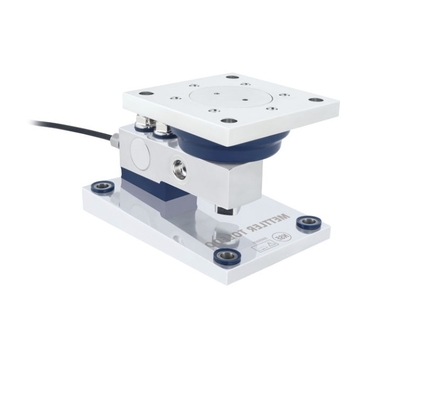

SWB805 Weigh Module 4.4T/10K C1 – 316 Stainless Steel High-Accuracy Load Cell

Certified Hygienic Solution

Our weigh module is designed according to hygienic principles and certified by NSF, reducing contamination risk to a minimum.

Reduced Cleaning Time

Increased efficiency thanks to highly-polished, self-draining surfaces that clean and dry quickly. Visual inspection is easy due to the open design.

Easy to integrate

Our weigh modules are shipped in a locked position and can be integrated without interfering with the sealing, thus no risk of contamination.

Product Description

A compression weigh module is designed so that its top plate and base plate will be squeezed toward each other when weight is applied. It can be attached directly to the ground, piers or structural beams. Compression weigh modules are typically used in multiples under large platform scales such as truck and railroad track scales, and in tank, hopper and silo weighing. Capacities for compression load cells, which are within compression weigh modules, range from 3 kg to 300 tons.

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	10,000 lb (4,400 kg)
Material	316 Stainless steel
Metrology	NTEP III 1.6 M OIML C1
Load Cell	SLB815
Accuracy	Low
Protection Rating	IP68/69k
Environment / Material	Frequent wash-down / Hygienic
Hazardous Approval	ATEX, FM, cFM
Criticality	Standard
Cable	5 m
