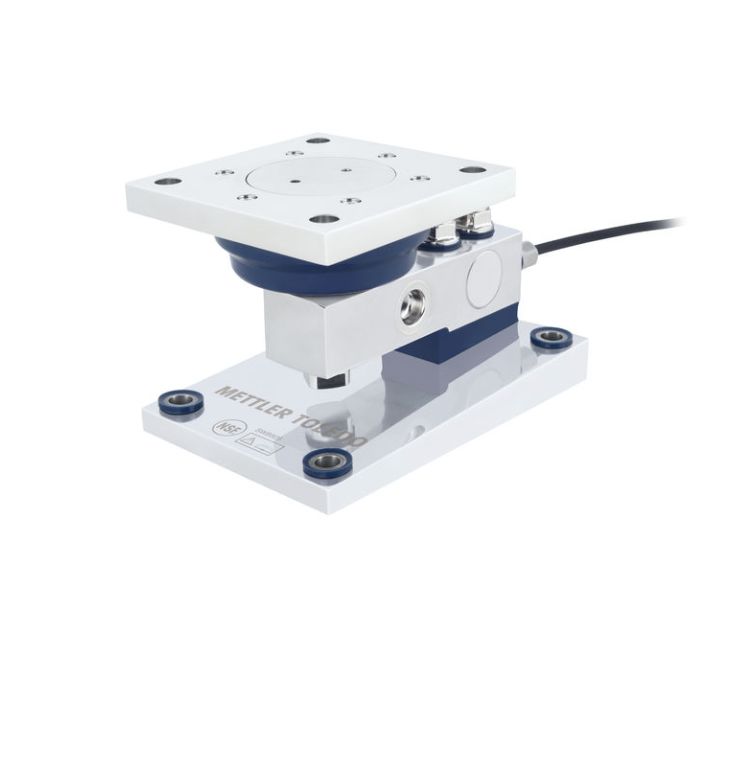

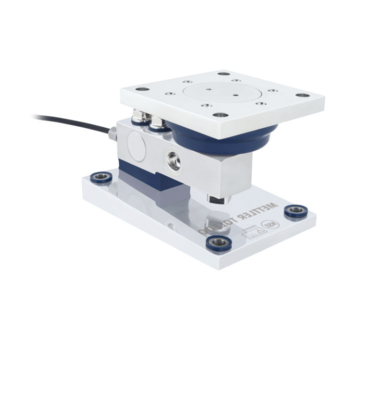

Name: SWB805 SS Weigh Module – 220kg/500lb Load Cell C3 Stainless Steel Sensor
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Modulo de pesaje SWB805 316 4.4T/10K C1
Availability: InStock

Inicio Productos

SWB805 SS Weigh Module – 220kg/500lb Load Cell C3 Stainless Steel Sensor

Datos del producto:

Lugar de origen:	China
Nombre de la marca:	Mettler Toledo
Número de modelo:	Modulo de pesaje SWB805 316 4.4T/10K C1

Pago y Envío Términos:

Cantidad de orden mínima:	1 juego
Precio:	Negociable
Detalles de empaquetado:	Caja de carón
Tiempo de entrega:	10-30 días
Capacidad de la fuente:	2000 juegos por mes

Contacto

Descripción detallada del producto

Producto:	Mettler Toledo Celular de carga	Capacidad Máxima:	500 libras (220 kg)
El material:	Acero inoxidable 304	metrología:	OIML C3, NTEP III 5M
Celular de carga:	SLB815	Precisión:	Estándar
Calificación de protección:	IP68/69k	Entorno / Material:	Lavado frecuente / Higiénico
Aprobación para materiales peligrosos:	ATEX, FM, cFM	Criticidad:	Estándar
El cable:	5 m
Resaltar:	stainless steel weigh module , 500lb load cell sensor , Mettler Toledo load cell

SWB805 SS Weigh Module – 220kg/500lb Load Cell C3 Stainless Steel Sensor

Certified Hygienic Solution

Our weigh module is designed according to hygienic principles and certified by NSF, reducing contamination risk to a minimum.

Reduced Cleaning Time

Increased efficiency thanks to highly-polished, self-draining surfaces that clean and dry quickly. Visual inspection is easy due to the open design.

Easy to integrate

Our weigh modules are shipped in a locked position and can be integrated without interfering with the sealing, eliminating contamination risks.

Product Description

A compression weigh module designed so that its top plate and base plate compress when weight is applied. It can be attached directly to the ground, piers, or structural beams. These modules are typically used in multiples under large platform scales such as truck and railroad track scales, as well as in tank, hopper, and silo weighing applications. Capacities range from 3 kg to 300 tons.

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	500 lb (220 kg)
Material	304 Stainless steel
Metrology	OIML C3, NTEP III 5M
Load Cell	SLB815
Accuracy	Standard
Protection Rating	IP68/69k
Environment / Material	Frequent wash-down / Hygienic
Hazardous Approval	ATEX, FM, cFM
Criticality	Standard
Cable	5 m
