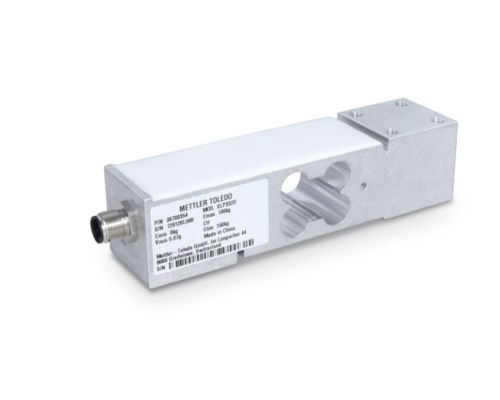

SLP332D-IOL Load Cell – 200kg C3/5k IO-Link Digital Weighing Sensor

Datos del producto:

Lugar de origen:	China
Nombre de la marca:	Mettler Toledo
Número de modelo:	Célula de carga SLP332D-IOL-200kg C3/5k

Pago y Envío Términos:

Cantidad de orden mínima:	1 conjunto
Precio:	Negociable
Detalles de empaquetado:	Caja de carón
Tiempo de entrega:	10-30 días
Capacidad de la fuente:	2000 juegos por mes

Contacto

Descripción detallada del producto

Producto:	Mettler Toledo Celular de carga	Capacidad Máxima:	200 kg (440 lb)
El material:	Aluminio, pasivado	metrología:	NTEP III 5.000d OIML C3
Exactitud:	Estándar	Calificación de protección:	Protección IP67
Aprobación para materiales peligrosos:	ATEX, FM	Criticidad:	Estándar
Tamaño de la plataforma (La x An):	400 mm x 400 mm	Conectividad:	Se ha integrado
Resaltar:	200kg IO-Link load cell , digital weighing sensor C3 , Mettler Toledo load cell

SLP332D-IOL Load Cell – 200kg C3/5k IO-Link Digital Weighing Sensor

Key Features:

Integrated PLC connectivity via IO-Link interface
Quick installation with standard cables and connectors
Smart5™ alarms and condition monitoring
Factory calibrated for immediate startup

Product Description

The SLP332D-IOL is a compression weigh module designed for direct attachment to ground, piers, or structural beams. When weight is applied, the top plate and base plate compress toward each other. Ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications.

Technical Specifications

Attribute	Value
Maximum Capacity	440 lb (200 kg)
Material	Aluminum, passivated
Metrology	NTEP III 5,000d OIML C3
Protection Rating	IP67
Hazardous Approval	ATEX, FM
Platform Size (LxW)	400 mm x 400 mm
Connectivity	Integrated

Advanced Features

Direct PLC Connectivity: The SLP33xD-IOL load cells connect directly to any automation systems via IO-Link, eliminating the need for additional electronic units.

Smart5™ Technology: Continuous condition monitoring and alarms according to NAMUR NE 107 ensure higher machine uptime and increased productivity.
