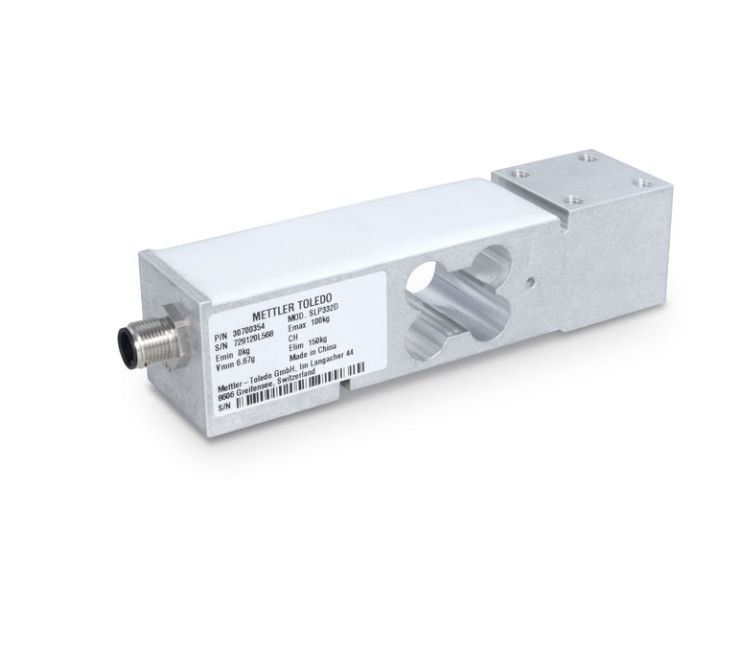

Name: SLP332D-IOL Load Cell – 100kg C6/6k IO-Link Digital Weighing Sensor
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Célula de carga SLP332D-IOL-100kg C6/6k
Availability: InStock

Inicio Productos

SLP332D-IOL Load Cell – 100kg C6/6k IO-Link Digital Weighing Sensor

Datos del producto:

Lugar de origen:	China.
Nombre de la marca:	Mettler Toledo
Número de modelo:	Célula de carga SLP332D-IOL-100kg C6/6k

Pago y Envío Términos:

Cantidad de orden mínima:	1 CONJUNTO
Precio:	Negociable
Detalles de empaquetado:	Caja de carón
Tiempo de entrega:	10-30 días
Capacidad de la fuente:	2000 juegos por mes

Contacto

Descripción detallada del producto

Producto:	Celular de carga de Mettler Toledo	Capacidad Máxima:	220 lb (100 kg)
Material:	Aluminio, pasivado	metrología:	NTEP III 5.000d OIML C3
Precisión:	normalidad	Calificación de protección:	Protección IP67
Aprobación para materiales peligrosos:	ATEX, FM	Criticidad:	estándar
Tamaño de la plataforma (La x An):	400 mm x 400 mm	Conectividad:	Se ha integrado
Resaltar:	100kg IO-Link load cell , digital weighing sensor C6 , Mettler Toledo load cell

SLP332D-IOL Load Cell – 100kg C6/6k IO-Link Digital Weighing Sensor

Key Features

Integrated PLC connectivity via IO-Link interface
Quick installation with standard cables and connectors
Smart5™ alarms and condition monitoring
Direct connection to automation systems without additional electronics
Factory calibrated for immediate startup

Product Overview

The SLP332D-IOL is a compression weigh module designed for industrial weighing applications. When weight is applied, the top plate and base plate compress toward each other. This load cell can be directly attached to ground, piers, or structural beams, making it ideal for large platform scales, tank weighing, and hopper/silo applications.

Technical Specifications

Attribute	Value
Maximum Capacity	220 lb (100 kg)
Material	Aluminum, passivated
Metrology Certification	NTEP III 5,000d OIML C3
Protection Rating	IP67
Hazardous Area Approval	ATEX, FM
Platform Size (LxW)	400 mm x 400 mm
Connectivity	Integrated

Smart Features

Integrated PLC Connectivity

The SLP33xD-IOL load cells connect directly to any automation systems via IO-Link, eliminating the need for additional electronic units.

Quick Installation

Standard cables and connectors simplify installation, while factory calibration ensures immediate startup.

Condition Monitoring

Continuous monitoring with Smart5™ alarms (NAMUR NE 107 compliant) increases machine uptime and productivity.
