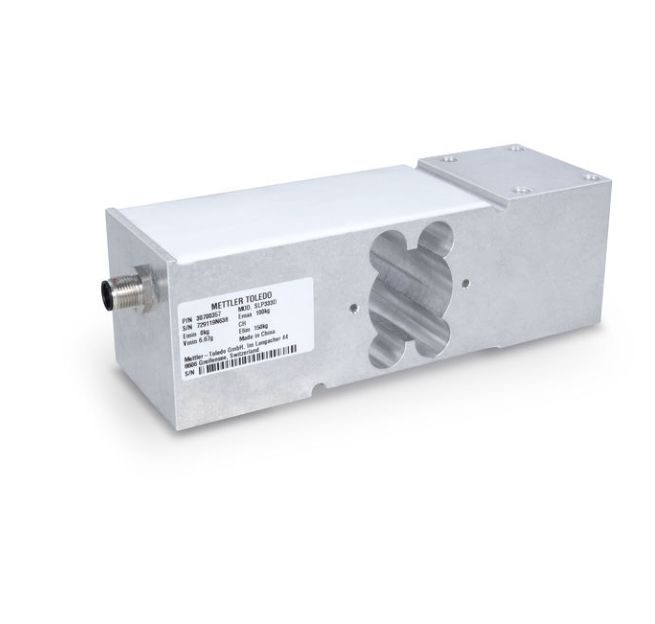

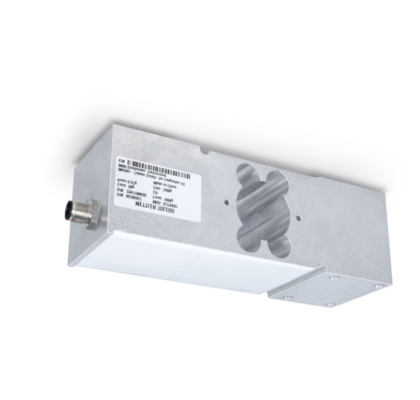

Name: SLP333D-IOL Load Cell – 500kg C6/6k IO-Link Digital Weighing Sensor
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Se trata de una serie de medidas de control de las emisiones de gases de efecto invernadero.
Availability: InStock

Inicio Productos

SLP333D-IOL Load Cell – 500kg C6/6k IO-Link Digital Weighing Sensor

Datos del producto:

Lugar de origen:	China.
Nombre de la marca:	Mettler Toledo
Número de modelo:	Se trata de una serie de medidas de control de las emisiones de gases de efecto invernadero.

Pago y Envío Términos:

Cantidad de orden mínima:	1 CONJUNTO
Precio:	Negociable
Detalles de empaquetado:	Caja de cartón
Tiempo de entrega:	10-30 días
Capacidad de la fuente:	2000 juegos por mes

Contacto

Descripción detallada del producto

Producto:	Celular de carga de Mettler Toledo	Capacidad máxima:	1,100 libras (500 kg)
Material:	Aluminio, pasivado	metrología:	NTEP III 10.000d OIML C6
Exactitud:	estándar	Calificación de protección:	Protección IP67
Aprobación para materiales peligrosos:	ATEX, FM	Criticidad:	estándar
Tamaño de la plataforma (La x An):	Las demás medidas de seguridad	Conectividad:	Se ha integrado
Resaltar:	500kg digital load cell , IO-Link weighing sensor , C6 class load cell

SLP333D-IOL Load Cell – 500kg C6/6k IO-Link Digital Weighing Sensor

A high-performance compression weigh module designed for industrial applications where direct PLC connectivity and precise measurement are required. The aluminum construction with passivated finish ensures durability in demanding environments.

Key Features

Integrated PLC connectivity: Direct connection to automation systems via IO-Link interface
Quick installation: Standard cables and connectors simplify setup with factory calibration
Smart5™ monitoring: Continuous condition monitoring with NAMUR NE 107 alarms
Robust construction: Aluminum housing with IP67 protection rating
Certified accuracy: NTEP III 10,000d and OIML C6 metrology standards

Technical Specifications

Product	Mettler Toledo Load Cell
Maximum Capacity	1,100 lb (500 kg)
Material	Aluminum, passivated
Metrology	NTEP III 10,000d OIML C6
Protection Rating	IP67
Hazardous Approval	ATEX, FM
Platform Size (LxW)	600 mm x 600 mm

Application Details

This compression weigh module is designed for force measurement in industrial weighing applications. The top plate and base plate compress when weight is applied, making it ideal for direct installation on ground, piers, or structural beams. Commonly used in multiples for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing systems.

Industrial Automation Ready

The integrated IO-Link interface eliminates the need for additional electronic units, providing direct digital communication with PLC systems. This feature reduces system complexity while maintaining high measurement accuracy in automated industrial environments.
