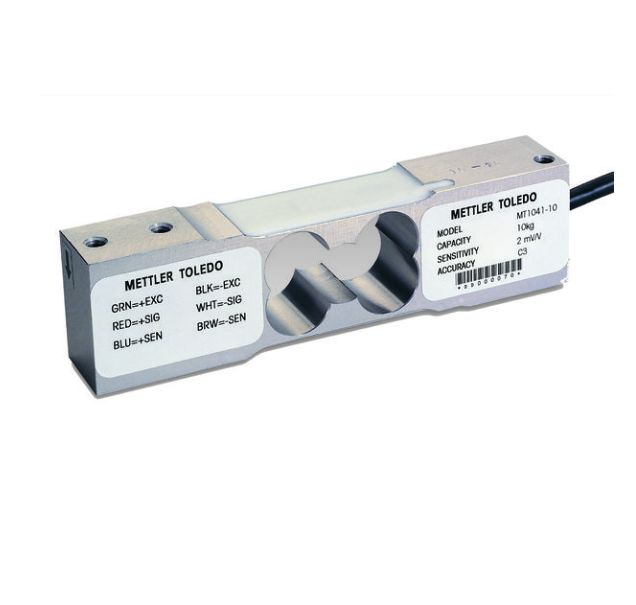

Name: Load Cell Sensor MT1041 30kg – Reliable Performance with 6m Long Cable
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Celular de carga MT1041-50kg 6m
Availability: InStock

Inicio Productos

Load Cell Sensor MT1041 30kg – Reliable Performance with 6m Long Cable

Datos del producto:

Lugar de origen:	China.
Nombre de la marca:	Mettler Toledo
Número de modelo:	Celular de carga MT1041-50kg 6m

Pago y Envío Términos:

Cantidad de orden mínima:	1 juego
Precio:	Negociable
Detalles de empaquetado:	Caja de cartón
Tiempo de entrega:	10-30 días
Capacidad de la fuente:	2000 juegos por mes

Contacto

Descripción detallada del producto

Producto:	Mettler Toledo Celular de carga	Capacidad Máxima:	66 lb (30 kg)
Material:	Aluminio, pasivado	Metrología:	NTEP III 5,000d OIML C3
Precisión:	Estándar	Calificación de protección:	Protección IP67
Tamaño de la plataforma (La x An):	400 mm x 400 mm	Conectividad:	Análogo
Cable:	20 pies (6 m)
Resaltar:	MT1041 load cell sensor 30kg , Mettler Toledo load cell with cable , 30kg load cell sensor 6m cable

Load Cell Sensor MT1041 30kg – Reliable Performance with 6m Long Cable

Key Features:

High-performance single point load cell with off-center compensation
Aluminum construction with passivated finish for durability
IP67 protection rating for harsh environments
Includes 6m (20ft) cable for flexible installation
ATEX Zone 1/21/2/22 approvals for hazardous areas
Metrology approvals: NTEP III 5,000d and OIML C3

Product Description

The MT1041 compression weigh module is designed for mid-size platforms, featuring a top plate and base plate that compress when weight is applied. This load cell can be directly attached to the ground, piers, or structural beams, making it ideal for truck scales, railroad track scales, and tank/silo weighing applications.

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	66 lb (30 kg)
Material	Aluminum, passivated
Metrology	NTEP III 5,000d OIML C3
Accuracy	Standard
Protection Rating	IP67
Platform Size (LxW)	400 mm x 400 mm
Connectivity	Analog
Cable	20 ft (6 m)

Performance Features

Reliable Strain Gage Technology: Utilizes premium aluminum materials and strain gage technology to ensure long-term durability and consistent performance.

Hazardous Area Usage: Comes with ATEX Zone 1/21/2/22 approvals as standard, eliminating the need for special variants or additional certifications.
