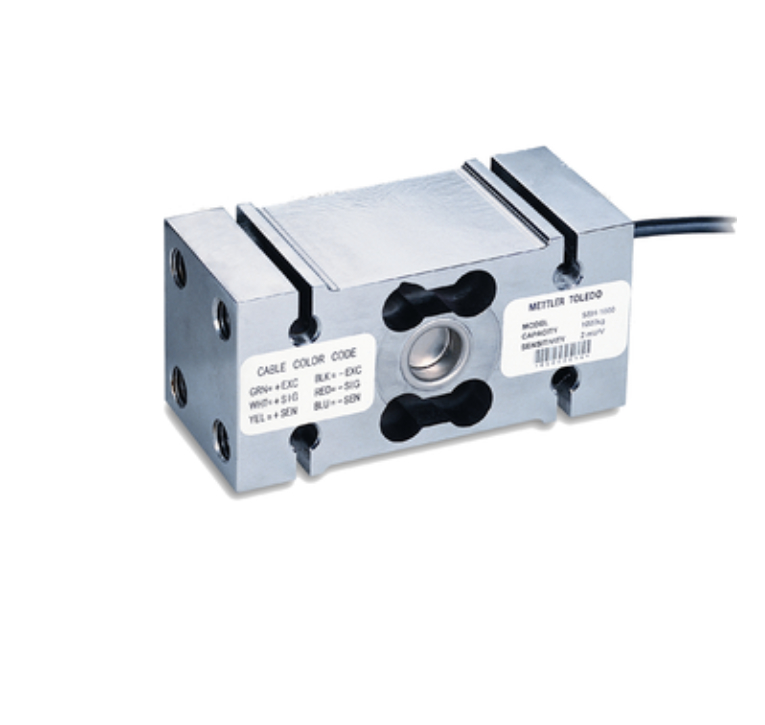

Name: SSH-1t Load Cell with 2.5m Cable – Durable High Capacity Sensor for Load Measurement
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Load Cell SSH-100kg 6m
Availability: InStock

Inicio Productos

SSH-1t Load Cell with 2.5m Cable – Durable High Capacity Sensor for Load Measurement

Datos del producto:

Place of Origin:	CHINA
Nombre de la marca:	Mettler Toledo
Model Number:	Load Cell SSH-100kg 6m

Pago y Envío Términos:

Minimum Order Quantity:	1 set
Precio:	Negociable
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contacto

Descripción detallada del producto

Product:	Mettler Toledo Load Cell	Maximum Capacity:	2,200 lb (1,000 kg)
Material:	Stainless Steel	Metrology:	Accuracy 0.02%
Accuracy:	Standard	Protection Rating:	IP68/69k
Platform Size (LxW):	1,200 mm x 800 mm	Cable:	20 ft (6 m)
Connectivity:	Analog
Resaltar:	SSH-1t load cell with cable , high capacity load measurement sensor , durable Mettler Toledo load cell

SSH-1t Load Cell with 2.5m Cable – Durable High Capacity Sensor for Load Measurement

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	2,200 lb (1,000 kg)
Material	Stainless Steel
Metrology	Accuracy 0.02%
Accuracy	Standard
Protection Rating	IP68/69k
Platform Size (LxW)	1,200 mm x 800 mm
Cable	20 ft (6 m)
Connectivity	Analog

A compression weigh module is designed so that its top plate and base plate will be squeezed toward each other when weight is applied to it, and it can be attached directly to the ground, piers or structural beams. Compression weigh modules are typically used in multiples under large platform scales such as truck and railroad track scales and in tank, hopper and silo weighing. Capacities for compression load cells, which are within compression weigh modules, range from 3 kg to 300 tons.

Wash-Down Applications

Accuracy

A high performance single point load cell. Load cell is off-center compensated thus copes with platform moments.

Reliable Strain Gage Technology

Usage of best steel materials & SG technology guarantee long term durability. Suitable for all but the harshest environments & conditions.

Fully Welded Design

Usage of stainless steel materials & fully welded design guarantee long term durability. Suitable even for the harshest environments & conditions.

Specifications

Material	Stainless Steel
Material No	71209937
Maximum Capacity	2,200 lb (1,000 kg)
Protection Rating	IP68/69k
Connectivity	Analog
Cable	PVC
Platform Size (LxW)	1,200 mm x 800 mm
Accuracy	Standard
Metrology	Accuracy 0.02%
