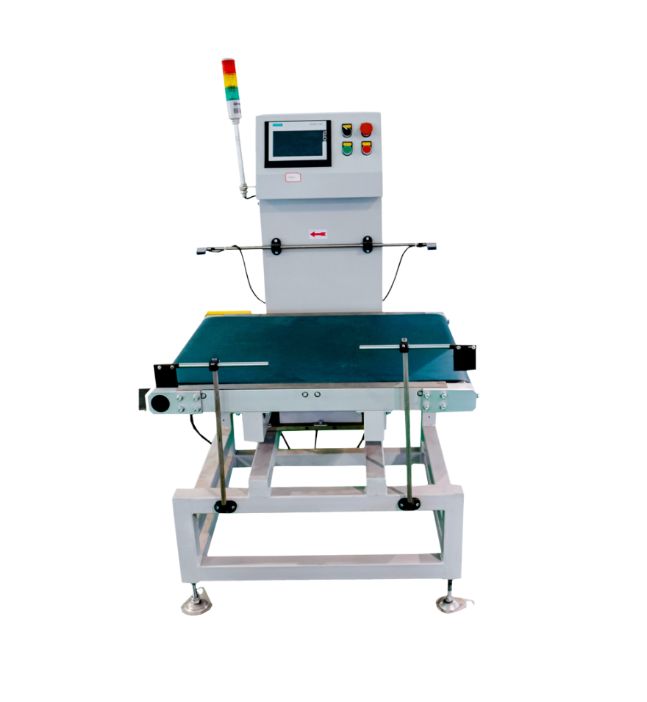

Checkweigher Combinations with X-ray Inspection

Datos del producto:

Lugar de origen:	China
Número de modelo:	Peso de comprobación Combinaciones con inspección por rayos X

Pago y Envío Términos:

Cantidad de orden mínima:	1 juego
Precio:	Negociable
Detalles de empaquetado:	Caja
Tiempo de entrega:	10-30 días
Capacidad de la fuente:	2000 establecido por mes

Contacto

Descripción detallada del producto

Product:	Checkweigher Combinations with X-ray Inspection	X-ray Tube:	160kV microfocus (0.4mm focal spot)
Detector Array:	64-bit dual-energy L-shaped configuration	Maximum Energy:	160kV/1.0mA (adjustable in 1kV increments)
Penetration Capacity:	15mm steel equivalent at 160kV	Image Resolution:	0.4mm/pixel at 50m/min
Capacity:	1g-30kg	Accuracy:	±0.1g or ±0.1% (whichever is greater
Resolution:	0.01g	Weighing Speed:	Up to 600ppm (product-dependent)
Diverter Gate:	300ppm	Robotic Arm:	Robotic Arm
Pneumatic Blow-off:	600ppm	Belt Lift:	200ppm
Resaltar:	Checkweigher with X-ray inspection , Combination checkweigher load cell , X-ray inspection checkweigher system

Checkweigher Combinations with X-ray Inspection

Key Specifications

Attribute	Value
X-ray Tube	160kV microfocus (0.4mm focal spot)
Detector Array	64-bit dual-energy L-shaped configuration
Maximum Energy	160kV/1.0mA (adjustable in 1kV increments)
Penetration Capacity	15mm steel equivalent at 160kV
Image Resolution	0.4mm/pixel at 50m/min
Capacity	1g-30kg
Accuracy	±0.1g or ±0.1% (whichever is greater)
Resolution	0.01g
Weighing Speed	Up to 600ppm (product-dependent)
Diverter Gate	300ppm

System Overview and Design Architecture

Integrated Machine Configuration

Unified Platform: Combines high-precision dynamic checkweighing with dual-energy X-ray inspection in a single footprint
Structural Components:
- Reinforced stainless steel frame (Grade 304/316L)
- Compact dimensions: 2200(L) × 950(W) × 1500(H) mm (standard)
- IP66-rated enclosure (IP69K washdown option available)
- Radiation-shielded housing (lead-lined, <1μSv/hr leakage)

Material Handling System

Infeed Section:
- Variable speed conveyor (5-100 m/min, servo-controlled)
- Automatic product spacing control
- Self-centering guide rails
Inspection Tunnel:
- Dual-modality inspection zone (X-ray + weighing)
- Height-adjustable aperture (50-200mm)
- Reject verification sensors
Outfeed Section:
- Three-way diverter system (accept/metal reject/weight reject)
- Buffer accumulation conveyor
