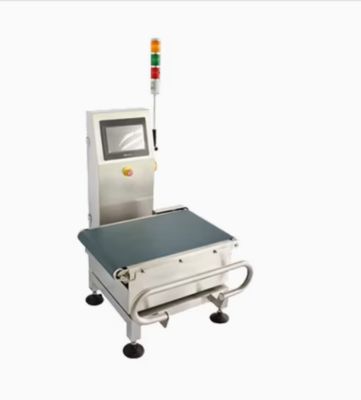

Name: Checkweigher Combinations with Vision Systems
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Checkweigher Combinations with Vision Systems
Availability: InStock

Inicio Productos Controlador de peso automático

Checkweigher Combinations with Vision Systems

Datos del producto:

Lugar de origen:	China.
Model Number:	Checkweigher Combinations with Vision Systems

Pago y Envío Términos:

Cantidad de orden mínima:	1 juego
Precio:	Negociable
Packaging Details:	Caron box
Tiempo de entrega:	10-30 días
Capacidad de la fuente:	2000 establecido por mes

Contacto

Descripción detallada del producto

Producto:	Combinaciones de controlador con sistemas de visión	Cámaras:	2-8X CMOS industrial (5-20MP)
Óptica:	Lentes telecéntricas (aumento de 0.1-0.5x)	iluminación:	Matrices de LED de ángulo múltiple (RGB/W/UV/IR)
Velocidad de cuadro:	Hasta 300 fps (dependiente del producto)	Resolución:	0.001g
Medición dimensional:	± 0.05 mm	Verificación de color:	150 ppm
Defectos de la superficie:	Defectos de 0.1 mm	Verificación de etiquetas:	300 ppm
Presencia/ausencia:	500 ppm	Capacidad:	0.1g-25 kg
Exactitud:	± 0.05% FS	Velocidad:	Hasta 600 ppm
Resaltar:	Mettler Toledo checkweigher with X-ray , checkweigher inspection combination load cell , X-ray inspection checkweigher

Checkweigher Combinations with Vision Systems

Key Specifications

Attribute	Value
Cameras	2-8x industrial CMOS (5-20MP)
Optics	Telecentric lenses (0.1-0.5X magnification)
Lighting	Multi-angle LED arrays (RGB/W/UV/IR)
Frame Rate	Up to 300fps (product-dependent)
Resolution	0.001g
Dimensional Measurement	±0.05mm
Color Verification	150ppm
Surface Defects	0.1mm defects
Label Verification	300ppm
Presence/Absence	500ppm
Capacity	0.1g-25kg
Accuracy	±0.05% FS
Speed	Up to 600ppm

System Overview

This advanced system combines high-precision dynamic weighing with multi-camera vision inspection for comprehensive quality control.

Machine Architecture

Modular Design: Integrated weighing and vision inspection system
Structural Components:
- Aluminum/stainless steel hybrid frame (Grade 304)
- Compact footprint: 1800(L) × 800(W) × 1400(H) mm
- IP65-rated enclosure (IP69K optional)
- Transparent safety guards with interlock switches

Material Flow Configuration

Infeed Section:
- Servo-driven belt conveyor (5-80 m/min)
- Product singulation system
- Barcode/RFID reader integration point
Inspection Zone:
- High-resolution vision tunnel
- Precision load cell weighing platform
- Multi-spectrum lighting array
Outfeed Section:
- Smart rejection system with 4-way sorting
- Verification sensors for quality tracking

Vision System Specifications

Parameter	Specification
Resolution	0.05mm/pixel at 50m/min
Dimensional Measurement	±0.05mm
Color Verification	150ppm
Surface Defects	0.1mm defects
Label Verification	300ppm
Presence/Absence	500ppm
