Name: Automated Checkweighing System for food industry
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Sistema automatizado de control de peso para la industria alimentaria
Availability: InStock

Inicio Productos Controlador de peso automático

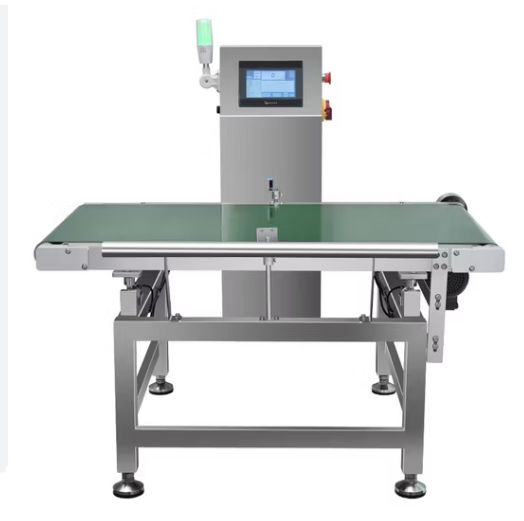

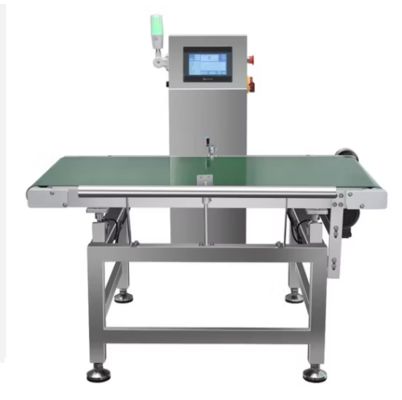

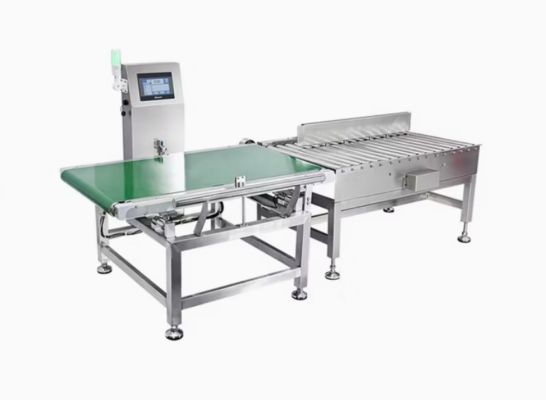

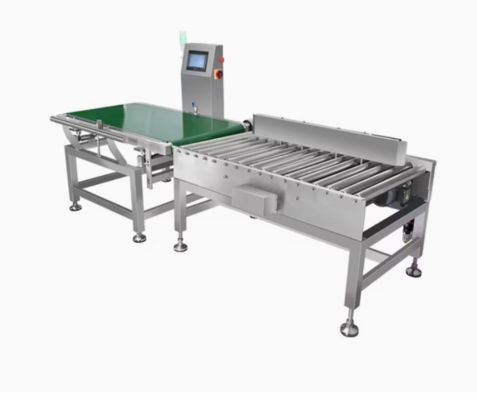

Automated Checkweighing System for food industry

Datos del producto:

Lugar de origen:	China
Número de modelo:	Sistema automatizado de control de peso para la industria alimentaria

Pago y Envío Términos:

Cantidad de orden mínima:	1 juego
Precio:	Negociable
Detalles de empaquetado:	Caja
Tiempo de entrega:	10-30 días
Capacidad de la fuente:	2000 establecido por mes

Contacto

Descripción detallada del producto

Product:	Automated Checkweighing System for food industry	Max Capacity:	1 kg, 5 kg, 20 kg
Readability / Graduation:	0.1 g, 0.5 g, 1 g	Throughput:	100 ppm (products per minute), 300 ppm, 600+ ppm
Accuracy:	±0.1 g to ±2 g	Conveyor Speed:	10-100 m/min
IP Rating:	IP65, 67,68	Belt Dimensions:	Varies by product size.
Reject Mechanism:	Air-jet, pusher, drop flap, diverter	Operating Interface:	Touchscreen HMI (Human-Machine Interface)
Connectivity:	Ethernet, USB, RS-232	Construction Material:	Stainless steel (SS304, SS316)
Dynamic Weighing Range:	Typically a percentage of the max capacity.
Resaltar:	automated checkweighing system for food , Mettler Toledo load cell checkweigher , food industry checkweighing system

Automated Checkweighing System for Food Industry

An Automated Checkweighing System is an essential piece of equipment in the food industry, designed to weigh products with high speed and precision as they move along a production line. This system is crucial for ensuring product quality, adhering to strict regulatory standards, and maximizing production efficiency.

Key Functions and Benefits

Ensuring Product Quality and Consistency: Maintains consistent product weight, preventing both underfilled and overfilled packages. Underfilling can lead to customer dissatisfaction and legal issues, while overfilling results in financial losses.
Compliance with Regulatory Standards: Essential for meeting food labeling laws that require accurate net weight. Provides digital audit trails and real-time data to prove compliance with legal requirements.
Production Line Integration: Seamlessly integrates into high-speed food production lines after filling or packaging stages. Can be linked with other quality control equipment like metal detectors and X-ray systems.

Technical Specifications

Parameter	Specification
Max Capacity	1 kg, 5 kg, 20 kg
Readability / Graduation	0.1 g, 0.5 g, 1 g
Throughput	100 ppm, 300 ppm, 600+ ppm
Accuracy	±0.1 g to ±2 g
Conveyor Speed	10-100 m/min
IP Rating	IP65, 67, 68
Belt Dimensions	Varies by product size
Reject Mechanism	Air-jet, pusher, drop flap, diverter
Operating Interface	Touchscreen HMI
Connectivity	Ethernet, USB, RS-232
Construction Material	Stainless steel (SS304, SS316)

etiqueta:

Persona de Contacto: Mrs. Shirley

Teléfono: +86-15851932889

Fax: 86-519-68781609
