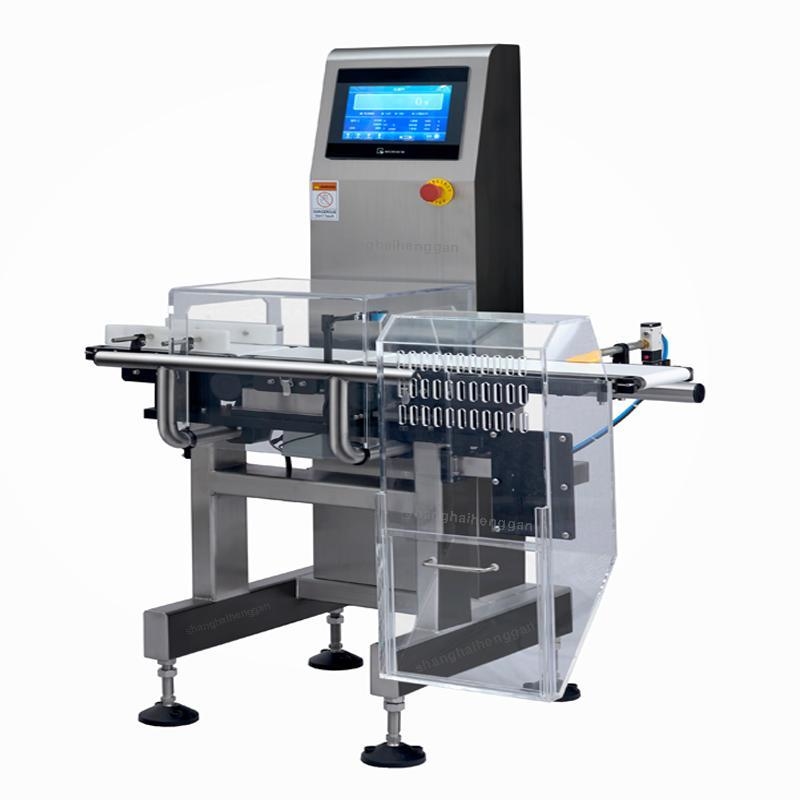

Solving Weight Variation Challenges in Manufacturing with Smart Checkweighers

Datos del producto:

Place of Origin:	CHINA
Model Number:	Solving Weight Variation Challenges in Manufacturing with Smart Checkweighers

Pago y Envío Términos:

Minimum Order Quantity:	1 set
Precio:	Negociable
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contacto

Descripción detallada del producto

Producto:	Resolver los desafíos de la variación de peso en la fabricación con checkweighters inteligentes	Rango de pesaje:	0.1g - 50 kg (dependiendo del modelo)
Precisión de peso:	± 0.1g a ± 1 g (depende de la velocidad y la carga)	Velocidad de pesaje:	Hasta 800 artículos/minuto (depende del tamaño del producto y el tipo de transportador)
Ancho del transportador:	100 mm - 600 mm (ajustable para diferentes productos)	Material transportador:	Acero inoxidable, cinturón PU de grado alimenticio o cinturón de plástico modular
Mecanismo de rechazo:	Presador neumático, puerta de caída, brazo del desviador o rechazo de tacto suave	Salida de datos:	RS-232, Ethernet, USB, Wi-Fi, 4G/5G, Cloud (MQTT, OPC UA)
Características de software:	SPC (control estadístico de procesos), análisis de tendencias en tiempo real, informes por lotes	Normas de cumplimiento:	Mettler Toledo, OIML R51, NTEP, FDA 21 CFR Parte 11
Temperatura de funcionamiento:	0 ° C a 40 ° C (algunos modelos admiten -10 ° C a 50 ° C)	Clasificación IP:	IP54 (estándar), IP65/IP66 (modelos de lavado para alimentos/farmacéuticos)
AI y aprendizaje automático:	Autocalibración, compensación de peso adaptativa, alertas de mantenimiento predictivo	Pesaje de múltiples carriles:	Admite 2 a 8 carriles para pesaje paralelo de alta velocidad
Comprobar y clasificar la funcionalidad:	Clasificación multinivel (bajo peso, sobrepeso, aceptable)
Resaltar:	smart checkweigher for manufacturing , automatic checkweigher with weight control , industrial checkweigher for weight variation

Solving Weight Variation Challenges in Manufacturing with Smart Checkweighers

Introduction to Weight Variation Issues in Manufacturing

Weight variation is a critical quality control challenge affecting numerous manufacturing sectors including food & beverage, pharmaceuticals, cosmetics, and chemical production. Inconsistent product weights can lead to:

Regulatory non-compliance with labeling requirements
Customer dissatisfaction from receiving underfilled products
Significant financial losses from product giveaway (overfilling)
Increased production costs due to waste and rework
Potential safety issues in dosage-sensitive products

Key Features Solving Weight Variation Problems

1. Real-Time Process Monitoring and Adjustment

Continuous weight measurement at production line speeds (up to 800 items/minute)
Instant feedback to filling machines for automatic adjustments
Statistical process control (SPC) integration for trend analysis

2. Advanced Rejection Systems

High-speed pneumatic or mechanical rejectors
Multi-level sorting based on precise weight thresholds
Gentle handling options for fragile products

3. Data Integration and Analytics

Cloud connectivity for centralized data management
Predictive analytics to identify patterns in weight variation
Automated reporting for quality assurance documentation

4. Adaptive Learning Capabilities

Self-calibration features to maintain accuracy
Machine learning algorithms that optimize checkweigher performance
Dynamic adjustment to product changes without manual intervention

Industry-Specific Applications

Food Manufacturing

Portion control for packaged foods
Compliance with net content regulations
Detection of missing components in multi-piece packages

Pharmaceutical

Precise tablet and capsule weight verification
Compliance with stringent GMP requirements
Batch documentation for regulatory audits

Chemical Industry

Accurate filling of hazardous materials
Verification of bulk chemical packaging
Prevention of costly material waste

Technical Specifications

Parameter	Specifications
Weighing Range	0.1g - 50kg (depending on model)
Weighing Accuracy	±0.1g to ±1g (depends on speed & load)
Weighing Speed	Up to 800 items/minute (depends on product size & conveyor type)
Conveyor Width	100mm - 600mm (adjustable for different products)
Conveyor Material	Stainless steel, food-grade PU belt, or modular plastic belt
Rejection Mechanism	Pneumatic pusher, drop gate, diverter arm, or soft-touch rejection
Data Output	RS-232, Ethernet, USB, Wi-Fi, 4G/5G, Cloud (MQTT, OPC UA)
Software Features	SPC (Statistical Process Control), Real-time trend analysis, Batch reporting
Compliance Standards	METTLER TOLEDO, OIML R51, NTEP, FDA 21 CFR Part 11
