Name: 100kg Load Cell MT1241 with 2m Cable – Precision Industrial Weight Sensor
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Célula de carga MT1241-100kg 2m
Availability: InStock

Inicio Productos

100kg Load Cell MT1241 with 2m Cable – Precision Industrial Weight Sensor

Datos del producto:

Lugar de origen:	China.
Nombre de la marca:	Mettler Toledo
Número de modelo:	Célula de carga MT1241-100kg 2m

Pago y Envío Términos:

Cantidad de orden mínima:	1 juego
Precio:	Negociable
Detalles de empaquetado:	Caja de cartón
Tiempo de entrega:	10-30 días
Capacidad de la fuente:	2000 juegos por mes

Contacto

Descripción detallada del producto

Producto:	Mettler Toledo Celular de carga	Capacidad Máxima:	220 lb (100 kg)
El material:	Aluminio, pasivado	Metrología:	NTEP III 5,000d OIML C3
Precisión:	normalidad	Grado de protección:	IP67
Tamaño de la plataforma (La x An):	400 mm x 400 mm	Conectividad:	Análogo
El cable:	6.6 pies (2 m)
Resaltar:	100kg load cell with 2m cable , precision industrial weight sensor , Mettler Toledo load cell with warranty

100kg Load Cell MT1241 with 2m Cable – Precision Industrial Weight Sensor

Key Features

High-performance single point load cell with off-center compensation
Aluminum construction with passivated finish for durability
IP67 protection rating for harsh industrial environments
Includes ATEX Zone 1/21/2/22 approvals for hazardous areas
Metrology approvals: NTEP III 5,000d and OIML C3

Product Description

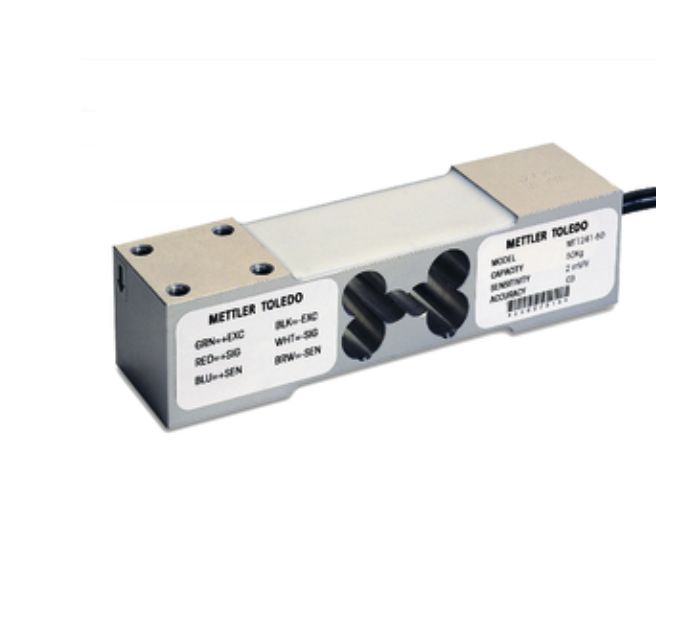

The MT1241 compression weigh module is designed for industrial weighing applications where its top plate and base plate are compressed when weight is applied. This load cell can be directly attached to the ground, piers, or structural beams, making it ideal for platform scales, tank weighing, hopper systems, and silo applications.

With a capacity range from 3 kg to 300 tons, these load cells are particularly suited for mid-size platforms. The MT1241 model features reliable strain gauge technology using premium aluminum materials to ensure long-term performance and accuracy.

Technical Specifications

Attribute	Specification
Product	Mettler Toledo Load Cell
Maximum Capacity	220 lb (100 kg)
Material	Aluminum, passivated
Material Number	71207453
Metrology	NTEP III 5,000d OIML C3
Accuracy	Standard
Protection Rating	IP67
Platform Size (LxW)	400 mm x 400 mm
Connectivity	Analog
Cable	6.6 ft (2 m) PVC
